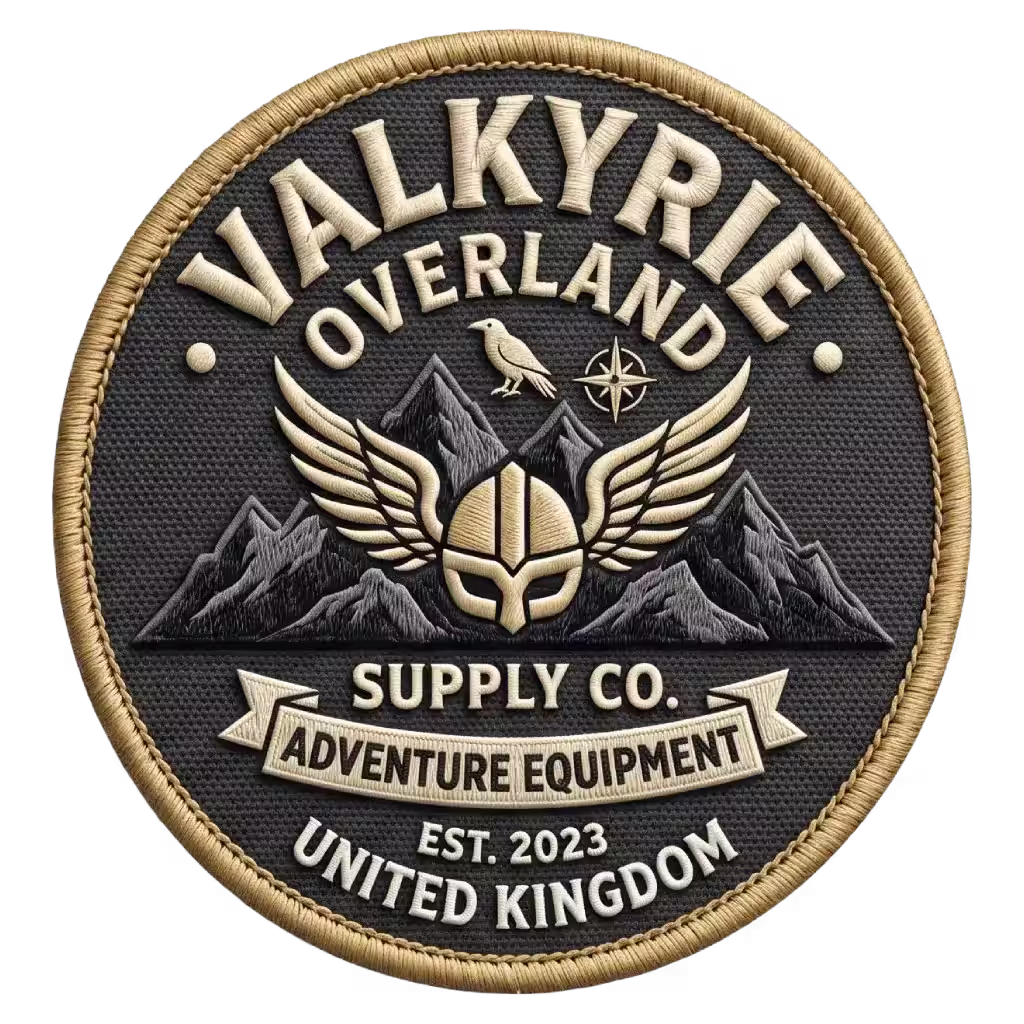

Custom 3D Puff Patches
Bold, dimensional branding, made in the UK.
Custom 3D puff patches are embroidered patches that use a puffy foam layer underneath satin stitching to create a raised, three-dimensional surface. Brands, sports clubs and uniform buyers across the UK choose 3D puff patches when they need a bold, tactile logo that stands out on caps, jackets and workwear.
At Custom Iron On Patches, we produce bespoke 3D puff patches with high-density satin stitching, premium foam and free artwork support, delivered UK-wide with tracked Royal Mail and DPD shipping.
2-6mm DepthFoam Underlay
What Are Custom 3D Puff Patches?
Custom 3D puff patches are foam-raised embroidered patches built on a twill base fabric. The patch maker places a sheet of puffy foam between the fabric and the embroidery thread, then stitches over it with high-density satin stitches. The needle perforates the foam, the satin thread compresses and wraps the foam edges, and the design rises off the surface to form a clean, dimensional shape.
The technique goes by several names. People call them puff embroidery patches, raised embroidered patches, foam patches, or simply 3D embroidered patches. Each name describes the same outcome, a logo, letter or shape that sits proud of the fabric instead of lying flat against it.
3D puff patches differ from standard embroidered patches in one key way: depth. A flat embroidered patch produces a textured but level surface. A 3D puff patch builds height of 2 to 6 millimetres above the twill, creating shadows and highlights that make the design visible from a distance. This is why streetwear brands, snapback hat designers and sports teams favour the technique for caps and jackets.
How 3D Puff Patches Are Made
The production process for custom 3D puff patches combines three engineered elements: the foam, the stitch density, and the digitised embroidery file. Each element controls a specific quality of the finished patch.
The Foam Layer
The foam layer determines the height and structure of the raised design. Embroidery foam is a non-toxic, water-resistant polyurethane sheet manufactured specifically for machine embroidery. We stock three standard thicknesses, and each thickness produces a different visual effect.
- 2 mm foam - Creates a subtle lift, ideal for refined logos where dimension matters but bulk does not.
- 3 mm foam - The industry standard for 3D puff embroidery. This thickness delivers the classic raised cap-logo effect seen on snapbacks and trucker hats.
- 6 mm foam - An extra-thick option that produces statement-level dimension. Brands use 6 mm foam when the design needs to dominate the patch visually.
We colour-match the foam to the top thread on every order. This step prevents any foam edges from peeking through the satin stitches, keeping the finish clean and professional.
Stitch Density and Satin Stitching
Stitch density controls how tightly the satin thread covers the foam. 3D puff patches use a stitch density between 0.16 mm and 0.22 mm, roughly 40 to 60 percent denser than flat embroidery. This high density serves two functions. First, it slices through the foam cleanly when the needle penetrates, creating sharp edges. Second, it covers the foam completely, hiding the underlay and producing a solid, polished surface.
Satin stitch is the only stitch type suitable for 3D puff. Fill stitches flatten the foam and ruin the raised effect. We also limit satin column width to 7 mm or less. Anything wider causes the embroidery software to auto-split the stitch, which damages the foam and breaks the dimensional finish.
Embroidery Digitising for Puff Designs
Embroidery digitising converts your artwork into a stitch file the embroidery machine reads. 3D puff patches require a separate digitised file from flat embroidery, the density, underlay and stitch order all change. Our team digitises every 3D puff design in-house at no extra cost. We accept artwork in AI, EPS, PDF, PNG or JPG format, with vector files producing the cleanest results.
Types of 3D Puff Patches We Produce
Custom 3D puff patches come in several variations. Each variation pairs the foam-raised technique with a different design approach, giving brands flexibility to match the patch style to the application.
Full 3D Puff Patches
Full 3D puff patches use foam underlay across the entire embroidered design. The whole logo, letter set or shape rises uniformly off the twill base. This style works best for bold, single-element designs, think monogram caps, single-word brand names, or simple icon logos. Streetwear brands and snapback manufacturers order full 3D puff patches when they want maximum visual impact.
Mixed 3D and Flat Embroidered Patches
Mixed patches combine foam-raised areas with flat embroidered details on the same patch. The 3D puff section handles the bold parts of the logo, usually large lettering or the central icon, while flat embroidery covers the finer details, outlines and supporting text. This hybrid approach delivers depth where it matters and clarity where the design needs precision. Sports clubs and corporate branding teams favour mixed patches because the technique handles complex logos without losing the raised effect.
3D Puff Letter and Number Patches
Letter and number patches are one of the most popular 3D puff applications in the UK. The technique suits block lettering, sans-serif fonts and chunky typography. We produce 3D puff letter patches for varsity-style apparel, team numbers, monograms and brand initials. Letter height should sit between 6 mm minimum and roughly 45 mm for the best raised effect.
3D Puff Logo Patches
3D puff logo patches turn brand marks into tactile, dimensional badges. Simple logo shapes, circles, shields, geometric icons, translate well to 3D puff. We digitise the logo specifically for foam embroidery, adjust the stroke widths to suit the foam thickness, and produce a patch that carries the brand's identity in raised form. Companies use 3D puff logo patches on uniforms, promotional caps, retail merchandise and corporate workwear.
Backing Options for 3D Puff Patches
The backing determines how the patch attaches to the garment. We offer four backing types with every 3D puff patch order, and each backing suits a different use case.
Iron-on backing
A heat-activated adhesive layer bonded to the back of the patch. Iron-on backing applies with a household iron in under 30 seconds and bonds to cotton, denim, polyester and most blended fabrics. This is our most popular option for caps, jackets and casual apparel.
Sew-on backing
A plain twill back with no adhesive. Sew-on patches attach by hand or machine stitching around the merrow border, producing the strongest possible hold. Sports clubs, motorcycle clubs and uniform suppliers choose sew-on backing when the patch needs to survive heavy washing or extended wear.
Hook-and-loop (Velcro) backing
A two-part system where the hook side bonds to the patch and the loop side sews onto the garment. Velcro backing makes the patch removable and interchangeable. Tactical, military and emergency services teams use hook-and-loop 3D puff patches for swappable identification badges.
Adhesive (peel-and-stick) backing
A temporary, pressure-sensitive adhesive. Adhesive backing suits short-term promotional use, event giveaways and trade show merchandise where permanent attachment is not required.
We include iron-on backing free with every order. Sew-on, Velcro and adhesive backings are available on request at no extra cost.
3D Puff Patches vs Flat Embroidered Patches
3D puff patches and flat embroidered patches share the same base materials, twill fabric, polyester thread and a merrow or laser-cut border, but they produce very different results. The table below compares the two techniques across every key attribute.
| Attribute | 3D Puff Patches | Flat Embroidered Patches |
|---|---|---|
| Surface profile | Raised, dimensional (2-6 mm) | Flat, low-profile |
| Foam underlay | Yes (2 mm, 3 mm or 6 mm) | No |
| Stitch type | Satin stitch only | Satin and fill stitches |
| Stitch density | 0.16-0.22 mm (high) | 0.4-0.6 mm (standard) |
| Minimum line thickness | 5-12.5 mm | 1 mm |
| Minimum letter height | 6 mm | 4 mm |
| Best for | Bold logos, block lettering, caps | Detailed designs, fine artwork, badges |
| Visual impact | High - visible from a distance | Subtle, classic embroidered look |
| Common applications | Snapbacks, trucker caps, streetwear | Uniforms, scout badges, jacket patches |
| Wash durability | Excellent (sew-on backing) | Excellent |
| Cost | 10-20% premium | Standard |
The choice between 3D puff and flat embroidery depends on the design and the application. Bold, simple logos on caps suit 3D puff. Detailed logos with fine text or intricate artwork suit flat embroidery. Mixed patches combine both techniques on a single piece.
What Designs Work Best for 3D Puff?
Not every design suits 3D puff embroidery. The foam underlay imposes specific design constraints, and respecting these constraints is the difference between a sharp, professional patch and a distorted, lumpy one.
Common Uses for Custom 3D Puff Patches in the UK
Custom 3D puff patches serve a wide range of UK industries, brands and organisations. The raised foam effect performs best on items where the patch sits prominently and benefits from visible dimension. Below are the four most common applications we produce for UK customers.
Snapbacks, Trucker Caps and Streetwear
Snapbacks and trucker caps are the most common application for 3D puff patches in the UK. The flat front panel of a snapback gives the foam-raised design a perfect canvas. Streetwear brands across London, Manchester, Birmingham and Bristol use 3D puff cap patches to create bold, retail-ready headwear. The raised stitching photographs well, displays cleanly on shop shelves, and signals premium quality to customers.
Sports Club and Team Patches
Sports clubs across the UK use 3D puff patches for team identity. Sunday league football clubs, rugby teams, cycling groups and boxing gyms order custom 3D puff patches with the club name, crest or initials. The raised effect makes the patch visible from the touchline, and sew-on backing handles the heavy wash cycles that team kit demands.
Workwear and Corporate Uniforms
Workwear suppliers and corporate uniform buyers choose 3D puff patches when standard embroidery feels too understated. The technique suits company logos applied to caps, polo shirts, hi-vis vests and softshell jackets. Pantone-matched threads keep brand colours consistent across every patch in a bulk order, and iron-on backing makes site-level application straightforward.
Motorcycle Club and Biker Patches
Motorcycle club patches have a long tradition of bold, dimensional embroidery. UK biker clubs, riding groups and custom bike builders order 3D puff patches for jacket backs, sleeve patches and chest patches. The raised stitching adds physical presence to club colours, and sew-on backing delivers the permanent hold that leather and denim jackets require.
How to Order Custom 3D Puff Patches
The ordering process is straightforward. We handle the digitising, foam selection and production decisions in-house, so you only need to supply the artwork and approve the proof.
Send your artwork.
Upload your logo, design or rough sketch through our quote form. Vector files (AI, EPS or PDF) produce the cleanest digitising results, but we accept PNG and JPG too. Hand-drawn sketches are also fine, our design team will redraw the artwork at no extra cost.
Receive a free digital proof.
Our digitising team converts your artwork into a 3D puff stitch file and sends a digital mock-up within 24 hours. The proof shows the patch size, foam thickness, thread colours, border type and backing.
Approve the proof.
Confirm the Pantone-matched thread colours, foam thickness (2 mm, 3 mm or 6 mm), patch size, border style (merrow or laser-cut) and backing type. Revisions are unlimited and free.
Production begins.
Our embroidery machines stitch your patches with high-density satin over the puffy foam underlay. Each patch goes through a quality check for stitch coverage, foam compression and edge cleanliness.
Finishing and trimming.
Excess foam is heat-trimmed at the edges, and any stray threads are removed. The merrow border or laser-cut edge is finished to a clean profile.
UK delivery.
Patches are packed and dispatched via tracked Royal Mail or DPD. Standard UK delivery completes the order, with tracking sent to your email on dispatch.
Pricing, Minimum Order and UK Turnaround
Pricing for custom 3D puff patches depends on three variables: patch size, order quantity and design complexity. Larger orders reduce the cost per patch significantly.
No setup fees, no hidden charges. All prices are quoted ex-VAT, with VAT at 20% added at checkout.
UK delivery is included on orders above the standard threshold, dispatched via Royal Mail Tracked or DPD next-day services.
Frequently Asked Questions
Order Your Custom 3D Puff Patches Today
Custom 3D puff patches turn ordinary embroidered branding into a tactile, three-dimensional statement. The combination of premium puffy foam, dense satin stitching and skilled digitising delivers a finish that flat embroidery cannot match. Whether the order is 25 patches for a Sunday league team or 500 patches for a streetwear retail run, our UK production line handles every job with the same attention to stitch quality, foam structure and Pantone accuracy.
Send us your artwork today and we will send a free digital proof within 24 hours. No setup fees, no minimum design charges, and unlimited revisions until the patch is exactly right.
